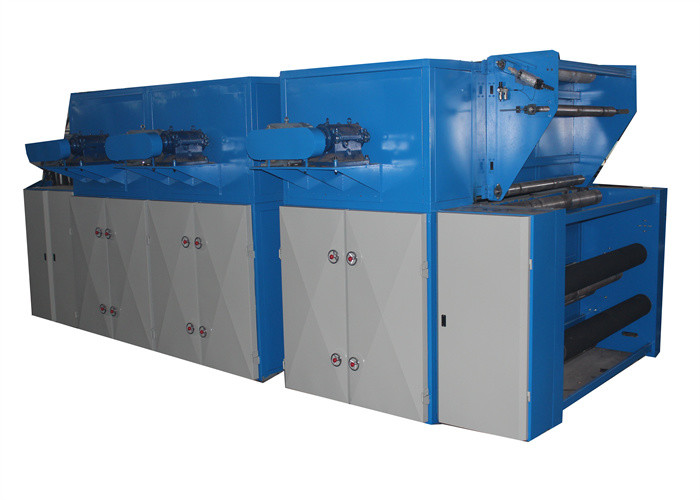

300kg/H Thermal Bonding Machine Non Woven Fabric Production Line

Ask Lasest Price
Brand Name :	HongYi
Model Number :	2900
Certification :	CE
Price :	negotiation
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1 SER 7DAYS
Delivery Time :	15DAYS AFTER RECEIVIBF DEPOSITE

Add to Cart

Product Details
Company Profile

300kg/H Thermal Bonding Machine Non Woven Fabric Production Line

Thermal Bonding Quilt Wadding Mattress Making Machine

Nonwoven machine wadding production line, Thermal bonding machine, Wadding machine
Working width	6800mm(adjustable from 2500-9800mm)
Max frequency	≤600s/min
Stroke	55mm(adjustable for customers' requirements)
Needleing type	up-down/down-up(adjustable for customers' requirements)
Delivery speed	1-8m/min
Needle density	2500-3500n/m(adjustable for customers' requirements)
Needle fix beam	Alumimum Alloy
Guiding Pipe	Copper sheating
Needle boards	The material is Epoxy resin or Alimimum Alloy, drilled with computer NC driller (hole 1.83m), so that certain the distance between the holes and the vertical between the hole and needle plate. The method of placing needles is decided by the requirement of the products. Fixing by screw.
Steel plate	The supporting board and stripper board are made of carbon steel of 12mm, hole 4.2mm, with chromium-plated surface, and polishing. Supporting net board and stripper board adopt electric for lift and down.
Frame	Machine frame is welded by carbon steel, with different thickness between 30mm-16mm,annealed under high temperature to eliminate internal stress.
Main components	The frame made from high quality metal plate,aluminum alloy beam and magnesium aluminum alloy/PU combined needle board.

Main regulations and technical indexes of combined machines

1. Machine working width: carding machine 1850mm-2500mm, Output width of cross lapper: 3200mm, heating chamber length of thermal bonding oven: 7000mm, winder and cutter: 2600mm

2. Width of final product: 2500mm

3. Weight range of final product: 80-1200gsm

4. Suitable material: 3D-15D*51mm-64mm polyester, polypropylene staple fiber, low melt fiber, coconut fiber, etc.

5. Production capacity: 250kg per hour

6. Electrical control system: the whole production line is controlled by PLC man-machine interface, equipped with touch screen.

It utilizes a servo motor and servo controller system or inverter with web storage and profiling function to keep the web thickness uniformly

Servo motor central controlling system and PLC touch screen interface. this provides high-quality web controlled by computer to ensure quality as well as speed

Bedding furniture, high-quality mattress, wadding
double layer chain board and Teflon coated, upper layer with independent lifting
two high-pressure circulation blowers , supreme insulation system to save energy

Raw material	polyester fiber, waste fiber, low melt fiber, etc.
Trim width	2500mm
Weight range	400g/m2-4000g/m2
Production capacity	1000kg/h
Trade term	FOB Shanghai
Payment term	30% T/T advance, 70% paid off before delivery.

technical parameter

machine width: 2600-3800mm
chamber length: 4800-6000mm
heating method: circulated hot oil direct burning
Capacity :1000KG/H

Trade terms	EXW, FOB, CIF
Leading time	90 days
HS code	84490090
Payment terms	30% deposit, 70% paid off before loading.
Warranty	12 months
After-sale service	The seller is responsible for installation and debugging. The buyer is responsible for the round-trip airplane tickets, accommodation, medical treatment, safety and relative fees. In addition, the buyers should assign a translator, workers, electrical cable (from machines to control panel and from power to control panel), and tools for installation to cooperate with the work. Installation cost is USD200/Day/engineer and totally installation period is about 30-35 days depending on well cooperation of the buyer.
