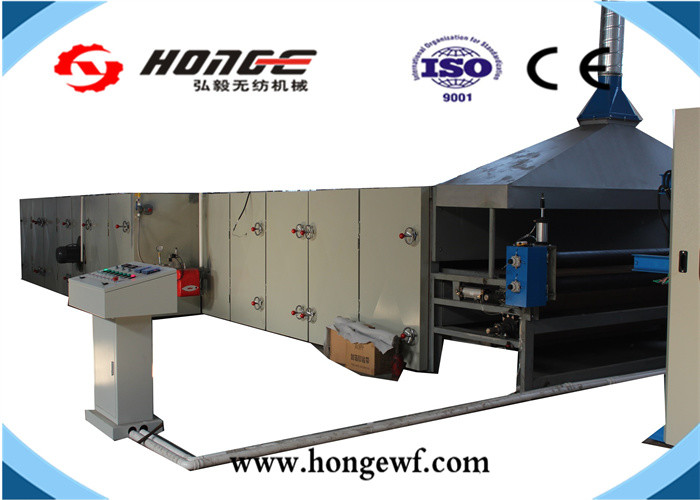

PET Or PP Thermal Bonding Oven Machine Polyester Wadding Mattress
Fabric Making Nonwoven Machine
The stiff waddings produced by this machine unit is replacement of
sponge,used for exclusive mattress,sofa cushion,tatami,filtering
material and acoustic flet,etc. The stiff waddings dryer adopts
stainless steel chain plate structure,to ensure the smoothness and
flatness of product surface.
Main regulations and technical indexes of combined machines
1. Machine working width: carding machine 1850mm-2500mm, Output
width of cross lapper: 3200mm, heating chamber length of thermal
bonding oven: 7000mm, winder and cutter: 2600mm
2. Width of final product: 2500mm
3. Weight range of final product: 80-1200gsm
4. Suitable material: 3D-15D*51mm-64mm polyester, polypropylene
staple fiber, low melt fiber, coconut fiber, etc.
5. Production capacity: 250kg per hour
6. Electrical control system: the whole production line is
controlled by PLC man-machine interface, equipped with touch
screen.
It utilizes a servo motor and servo controller system or inverter
with web storage and profiling function to keep the web thickness
uniformly
Servo motor central controlling system and PLC touch screen
interface. this provides high-quality web controlled by computer to
ensure quality as well as speed
- Bedding furniture, high-quality mattress, wadding
- double layer chain board and Teflon coated, upper layer with
independent lifting
- two high-pressure circulation blowers , supreme insulation system
to save energy
Raw material | polyester fiber, waste fiber, low melt fiber, etc. |
Trim width | 2500mm |
Weight range | 400g/m2-4000g/m2 |
Production capacity | 1000kg/h |
Trade term | FOB Shanghai |
Payment term | 30% T/T advance, 70% paid off before delivery. |
technical parameter
- machine width: 2600-3800mm
- chamber length: 4800-6000mm
- heating method: circulated hot oil direct burning
- Capacity :1000KG/H
Trade terms | EXW, FOB, CIF |
Leading time | 90 days |
HS code | 84490090 |
Payment terms | 30% deposit, 70% paid off before loading. |
Warranty | 12 months |
After-sale service
| The seller is responsible for installation and debugging. The buyer
is responsible for the round-trip airplane tickets, accommodation,
medical treatment, safety and relative fees. In addition, the
buyers should assign a translator, workers, electrical cable (from
machines to control panel and from power to control panel), and
tools for installation to cooperate with the work.
Installation cost is USD200/Day/engineer and totally installation
period is about 30-35 days depending on well cooperation of the
buyer. |
