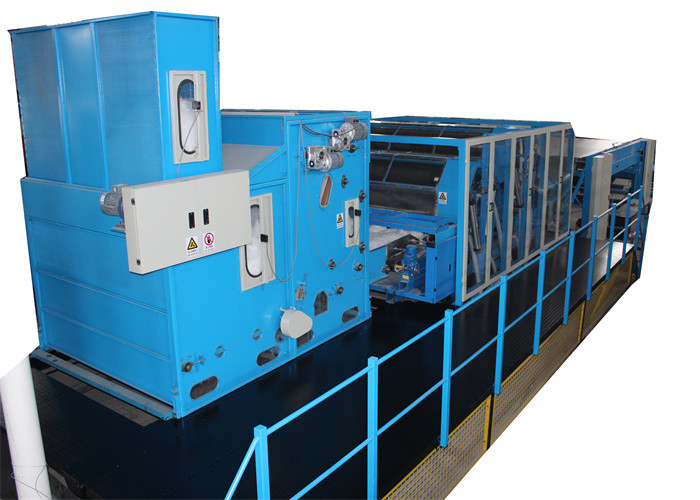

Non Woven Vibrating Feeding Hopper Machine
1. The machine blends the opened fibers further and feed the even
batt by vibrating to the next process. It can be applied for
polyester, viscose, nylon, pp, glass fiber, etc.
2. The spike and oblique lattice feeds the fiber delivered by main
opener. The evener roller will remove the extra fiber and the
stripper will strip the fiber and then the fibers drop to the
vibrating cabin. The Start-Stop of the spike and oblique
latticewill be controlled by the Photoelectric to make sure the
fibers cubage and balance.
3. As there are many kind of the fibers, the hanging fiber will
appear in the stripper, evener roller or wool board. This will
affect the quality and evenness of the fiber. If this happens, it
should be removed in time
| Working width | 2.3m |
| Machine width(mm) | 2.6m |
| Feeding type | shaking plate |
| Stripper roller | 412mm |
| Beating roller Dia.(mm) | 422 |
| Capacity | 500kg/h |
| Motor brand | Siemens-Beide, Made in China |
| Inverter brand | Siemens |
Vibrating Feeder
- Working Width:1700-2440mm
- Capacity:500kg/h
- Installed Power:9.3KW
Functionality & application: The machine blends the fibers further more and utilize vibration
work to deliver the even fiber batt into next carding process.
Features:
1. Synchronized operation with opener to regulate the storage and
feeding instantly
2. The adjustable cubage and vibrating mode makes the density even.
3. Quantitative feeding & precise output
Pre-Sales Service
*Inquiry and consulting support
*Sample testing support
*View our factory
After-Sales Service
*Training how to install the machine , training how to use the
machine
*Engineers available to service machinery overseas
*Warranty :12 months
*Certificate : ISO9001 CE
Trade information
| Payment terms | 30%deposite by TT, 70% should be paid off before delivery. |
| Delivrey time | Appox 30 working days after receiving the rest payment |
| Package | nake or wooden case |
| Warrantty | 12 months |
| After sales service | we will send 2-3 workers to do the installation and commissioning
of the line at the request of the buyer . and the buyer should
provide round-trip air plane tickets ,accommodation and allowance ,
the allowance is 180USD /person/day. |
| HS code | 84490090 |
