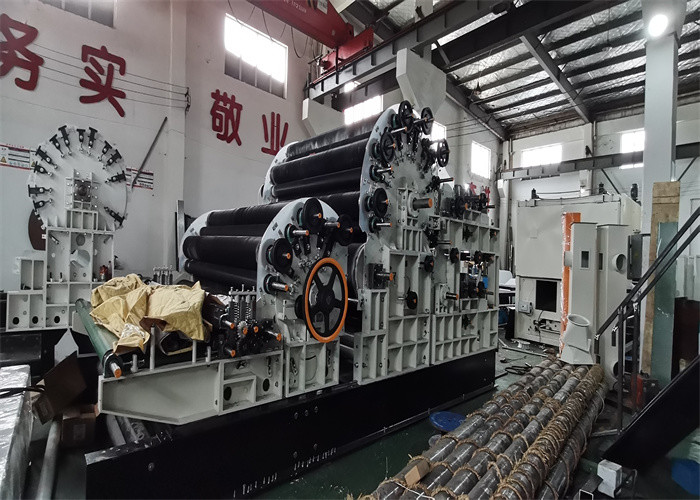

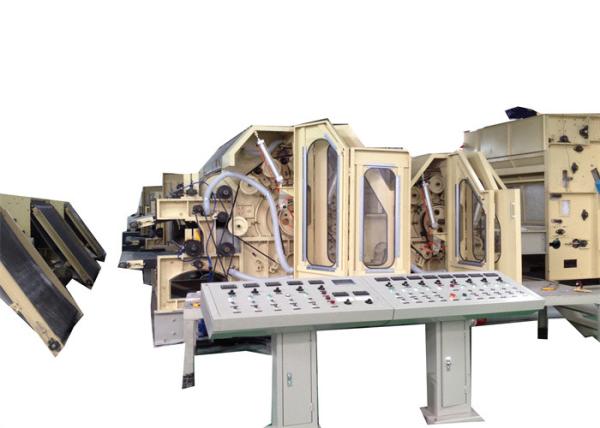

Polyester fiber Carding Machine Nonwoven machine for nonwovens
Main specifications:
1. The lower investment can reduce some unnecessary additional
auxiliary facilities, and under the conditions of guaranteeing the
technology requirement and safe production, can reduce the cost of
the manufacture, so that we can reduce the investment lower.
2.I ts easy and reliable to making technics adjustment, the line
adopts the method of computer controlling assistant systems
combines with human control to make the technics adjustment become
more easier and reliable, and the machine can adapt to different
raw materials to gain more widely usage.
3. The requirement of the workshop and equipment is very simple, it
reduces the fixed assets investment, and efficiently take the
advantage of the room of the platform, and enlarge the utilization
of the workshop and the steel platform.
4. More specialty in processing the main equipment increasing the
procession precious and capacity of the machine, this reduces the
manufacture cost and to undertake the quality of the product more
well.
Principle: fiber is fed to feed conveyor from front feed equipment (such as
pneumatic tuft feeder )and form thicker fiber web, then flocks are
fed to breast cylinder by feed roller and taker-in, then
transferred to the main cylinder by transfer roller .8pairs carding
units (worker rollers and stripper roller )are equipped on breast
cylinder and main cylinder for opening and carding fiber, fiber
which on the main cylinder is stripped onto the upper and lower
web-out conveyor by stripping roller after passing doff and
condenser roller, forming uniform web and feed to next machine
| Name | SL150 | SL185 | SL185 |
| Working Width(mm) | 1500 | 1850 | 2500 |
| Factory | Hongyi Nonwoven Machinery Co,Ltd |
| Output speed(m/min) | 20-70 |
| Web weight(g/m2) | 10-50 |
| Feed Roller | Dia(mm) | 76(naked roller) |
| Speed(RPM) | 800 |
| Breast cylinder | Dia(mm) | 850 |
| Speed(RPM) | 300 |
| Main cylinder | Dia(mm) | 1230 |
| Speed(RPM) | 320 |
| Doff | Dia(mm) | 500 |
| Speed(RPM) | 20 |
| Condenser Roller | Dia(mm) | 300 |
| Speed(RPM) | 60 |
| Total Power | 70.4KW | 108.8kw |
Specifications:
- Frame width :1700-2500mm
- Capacity :500kg/h
- Installed power:9.3kw
- Self-carried reserve chute with controllable height
- Inverter controlled output device and adjustable output speed
- Adjustable output thickness ranging from 80-150mm according to
productivity
- The machine is used to process the batt of fiber to obtain a hard
and thick thermal-bonding wadding. The low melt fiber will combine
other fibers together through hot air penetration and a colling
system for reinforcement.
Main specifications
- Working width ≤5000mm
- Product weight (60-1500)gram/㎡
- Product thickness (3-200)mm
- Surface temp. ≤220℃
- Heating method hot oil circulation, electricity heating, direct
burning
- Oven working width 6.0m 8.0m 10m
Structure
- Single layer,single belt or double-belt structure
- Up and down belts hold the web for entering to get heated and
formed.
- High temperrature resistance TEFLON belt with auto correction
device.
- Main drive and fan inverter controlling.
Payment term | 30%as deposit by TT,70% must bepaid before shipment |
Export country | Bangladesh, India ,Mexico ,Ruassian ,etc. |
Delivery times | 120 working days upon receipt of down payment |
Package | nude , but according customers |
After sales service | We will send 2-3 engineers to install machines and teach your
worker how to run machine well. The buyer shoud provide the visa .
Round-trip air tickets , food and accommodation , and the other
necessary healthy insurance and safely etc |
