3.5m Thermal Bonded Wadding Production Line For Comforter

Ask Lasest Price
Brand Name :	HongYi
Model Number :	2900
Certification :	CE/ISO
Price :	negotiation
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1 SER 7DAYS
Delivery Time :	15DAYS AFTER RECEIVIBF DEPOSITE

Add to Cart

Product Details
Company Profile

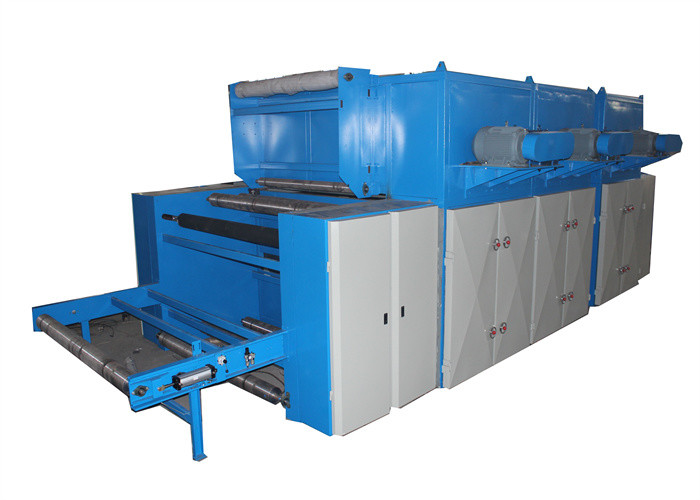

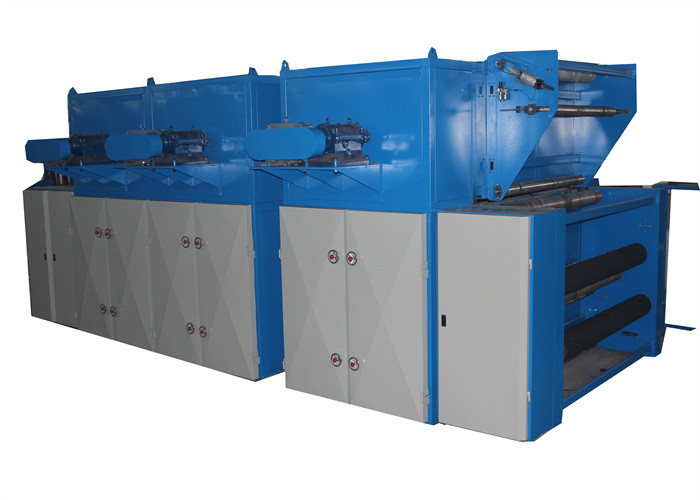

3.5m Thermal Bonded Wadding Production Line For Comforter

Fully automatic thermal bonding wadding machine line for comforter

APPLICATION

Use of production line: This production line is used to produce high-grade household textile materials like silk cotton, which is widely used in clothing, bedding and furniture. According to customer requirements, it can be divided into four heads, six heads, seven heads and so on. The more heads, the higher the output.

FEATURES
1.The frame is welded by high-quality steel, and the structure is stable. 2.Safety protection: (1) All transmission parts are
protected by protective covers. (2) The electrical part is provided with overload protection, overcurrent protection, short
circuit protection and emergency stop button. (3) Warning signs are required for necessary parts.

SPECIFICATION:
Thermal bonded production line---Non-glue wadding making machineProcess flow:Bale Opener - Opening Machine -Vibration Feeder-Carding Machine -Cross Lapper - The Oven Machine -Calender Machine - Winder&Cutter

Main regulations and technical indexes of combined machines

1. Machine working width: carding machine 1850mm-2500mm, Output width of cross lapper: 3200mm, heating chamber length of thermal bonding oven: 7000mm, winder and cutter: 2600mm

2. Width of final product: 2500mm

3. Weight range of final product: 80-1200gsm

4. Suitable material: 3D-15D*51mm-64mm polyester, polypropylene staple fiber, low melt fiber, coconut fiber, etc.

5. Production capacity: 250kg per hour

6. Electrical control system: the whole production line is controlled by PLC man-machine interface, equipped with touch screen.

It utilizes a servo motor and servo controller system or inverter with web storage and profiling function to keep the web thickness uniformly

Servo motor central controlling system and PLC touch screen interface. this provides high-quality web controlled by computer to ensure quality as well as speed

Bedding furniture, high-quality mattress, wadding
double layer chain board and Teflon coated, upper layer with independent lifting
two high-pressure circulation blowers , supreme insulation system to save energy

Raw material	polyester fiber, waste fiber, low melt fiber, etc.
Trim width	2500mm
Weight range	400g/m2-4000g/m2
Production capacity	1000kg/h
Trade term	FOB Shanghai
Payment term	30% T/T advance, 70% paid off before delivery.

technical parameter

machine width: 2600-3800mm
chamber length: 4800-6000mm
heating method: circulated hot oil direct burning
Capacity :1000KG/H

Trade terms	EXW, FOB, CIF
Leading time	90 days
HS code	84490090
Payment terms	30% deposit, 70% paid off before loading.
Warranty	12 months
After-sale service	The seller is responsible for installation and debugging. The buyer is responsible for the round-trip airplane tickets, accommodation, medical treatment, safety and relative fees. In addition, the buyers should assign a translator, workers, electrical cable (from machines to control panel and from power to control panel), and tools for installation to cooperate with the work. Installation cost is USD200/Day/engineer and totally installation period is about 30-35 days depending on well cooperation of the buyer.

3.5m Thermal Bonded Wadding Production Line For Comforter
