Changshu HongYi CE/ISO9001 2 m double cylinder double doffer Nonwoven carding machine for felt

Function and characteristics
This machine is used for fully carding the fiber batt following opening and blending, then forming parallel or random web through doffer and random if required, which is then supplied to the next processes The company produces carding machines to cover all types of fiber, synthetic and natural fibers, etc. From very fine to very coarse deniers, fiber length up to 120mm.

1. Card with cylinders up to 1.5meters in diameter and up to 2.5meters in width are produced as normal standard
2. Card main cylinders are balanced to a surface speed of 1500meters //min, output speed up to 80m/min, web weight 12-60g/m2
3. Card capacity is depending upon card type, fiber denier, types of fiber but can be excess of 800 kg/h

• All types of cards both single and double doffers can be fitted with randomizer rollers or not dependent on the customer’s needs
• All drives including main drive, doffers, workers, feed roll, etc. Are variable speed. Metal detection devices are standard on feed rolls
• Card wires can be supplied as a surface wound or interlocking as required
• The multi-point suction system ensures all free fiber and dust is continuously removed from the card to be recycled or fed another recycling process
• High precision fitted undergirds effectively control the airflow and ensure the CV value of fiber web
• Surface precision grinding of the cylinder ensures less than 0.02mm runout as normal tolerance
• All main cylinders and lager roller are precisely balanced before assembly
• Top covers are opened and closed by motor assisted system
• The control system may be by servo-motor or inverter drives according to customer requirements. this ensures that the total line will have constant synchronization with controlled stable start and stop of the line
• The card is fitted with a system to minimize rollers of fiber thus helping to protect card wire
• The cards have a complete and total electronic safety system to meet all international standards. Other details and variables are dependent on customer’s needs and can be discussed with our technical staff

Specifications:

Certificate :

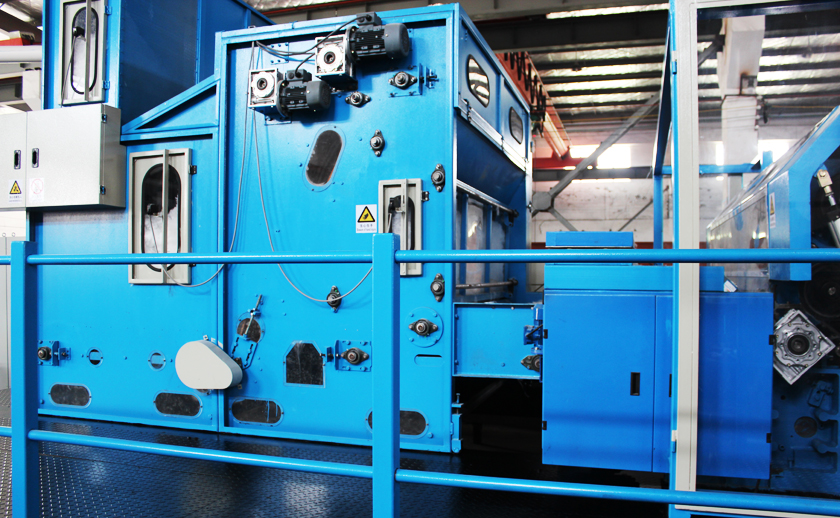

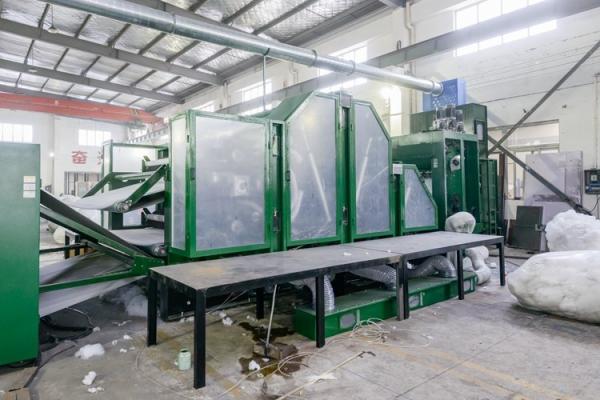

real photos:

Exhibitions :

Agent:

CHANGSHU HONGYI NONWOVEN MACHINERY CO., LTD is a professional nonwoven machinery manufacturer located in Changshu City, Jiangsu Province of China. HONGYI has more than 20 years experience in nonwoven machinery manufacturing. The company occupies about 5000m2 area, including manufacturing workshops and office building.

Until now, we have established 10 series 0f nonwoven machinery all over the country and also expand our business scope abroad, up to date, we have exported production line to Southeast Asia, Europe, South America and Austria, etc.
