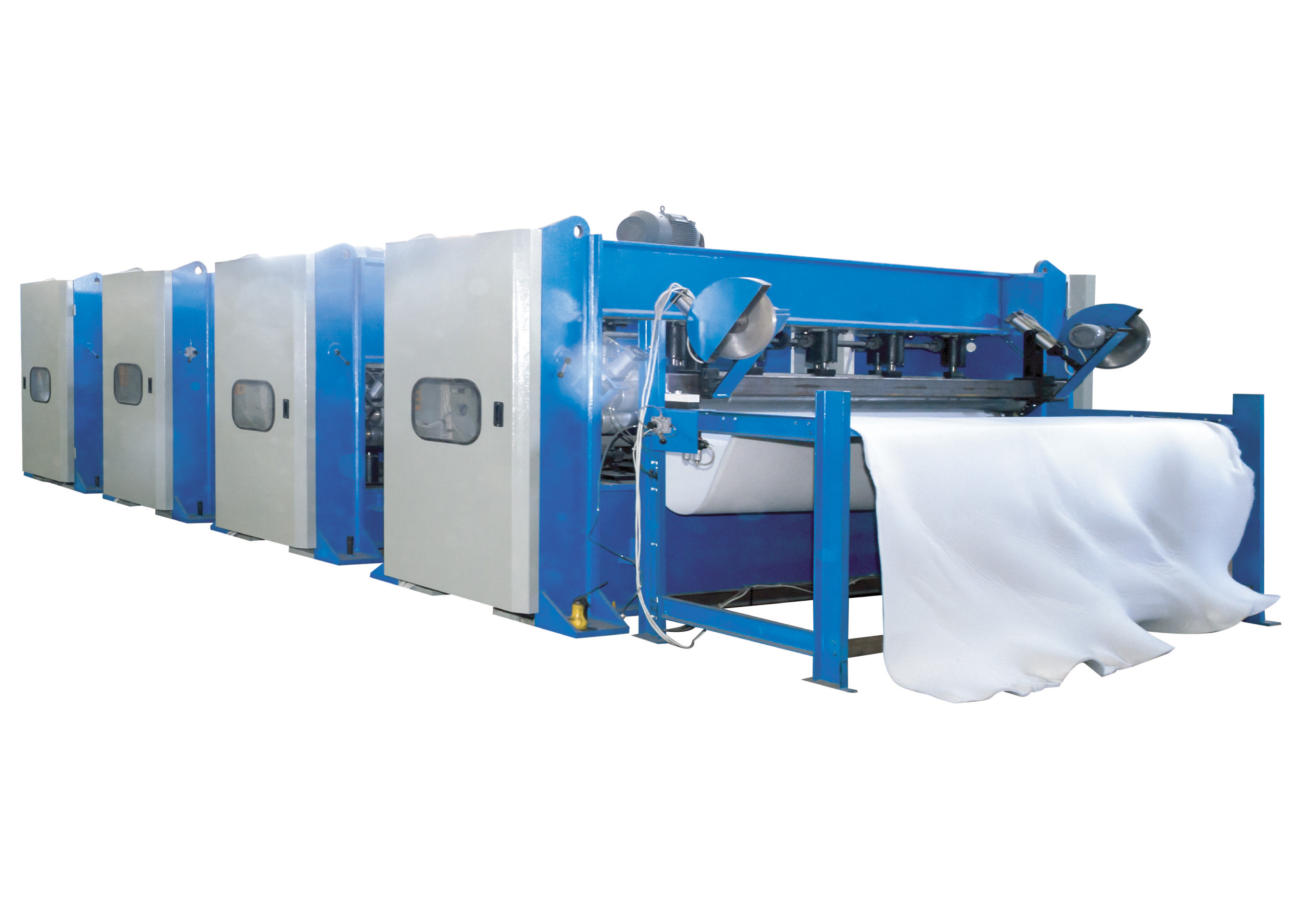

Nonwoven High Needle Frequency Needle Beam Rocker Arm Guiding
System Needling Punching Machine
| prepunch,upstroke,downstroke and counter punch . |
| |
| |
| |
| |
| |
| |
| |
| |
Technical parameters:
| Working width | 1500-8800mm |
| Needle stroke | 30-70mm |
| Needle density | 3000n/m-7000n/m |
| Needle frequency | Max. 1300rpm |
| Machine type | Single shaft single board, double shaft single board, double shaft
double board |
| Installed power | Depends on the product requests. |
| Line speed | 1-10m/min |
| Needle board | Aluminum-Magnesium alloy plate |
Structure characteristics:
a) Frame structures, to form by high quality armor plate welding.
b) It adopts single principle axis structure with single needle
board.
c) Needle beam, working beam are high temperature shaped and
precision processed.
d) Materials of main shaft adopt alloy steel, and made finely after
high quality finishing.
e) The lifting and dropping of the bottom plate and stripper plate
is controlled by electromotor and scale display.
f) Needle plate adopts Aluminum-Magnesium alloy plate, three plates
with irregular computerized perforating.
g) The bottom plate and stripping plate with surface plated by hard
chromium and polished.
h) Input and output roller with surface chrome-plated and
controlled by separate frequency conversion.
Application:
The main applications of needle punched nonwoven materials are
carpets, decorative felts, sports mats, furniture pads, shoes and
hats, shoulder pads, synthetic leather base fabric, coated base
fabric, ironing pads, filter materials, geotextile products, paper
making blankets and so on.
It can also be used for automotive interiors, roofs and other
insluation materials.
Trade information:
| Trade terms | FOB, CNF, or CIF |
| Lead time | 90 days after deposit. |
| Payment terms | 30% advance payment, 70% paid off before delivery. |
| Warranty | twelve (12) months after mechanical and electrical commissioning. |
| After-sale service | The seller is responsible for installation and debugging. The buyer
is responsible for the round-trip airplane tickets, accommodation,
medical treatment, safety and relative fees. In addition the buyers
should assign translator, workers, electrical cable (from machines
to control panel and from power to control panel) and tools for
installation to cooperate with the work. Installation cost is
USD180/Day/engineer and totally installation period is about 30-40
days depending on well cooperation of the buyer. |
