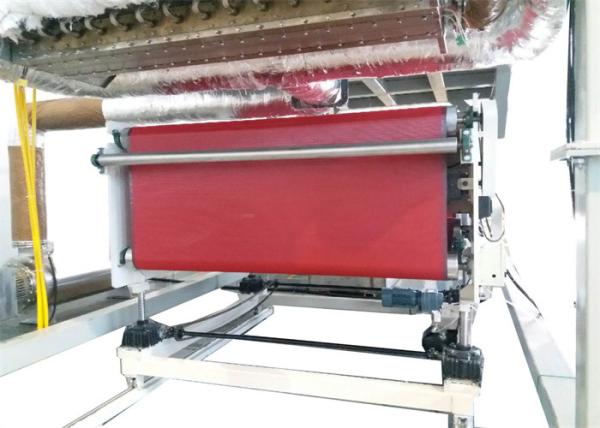

Polypropylene Spunbond Nonwoven Production Line

Ask Lasest Price
Brand Name :	Honge
Certification :	CE ISO
Price :	$350,000.00/Sets >=1 Sets

Add to Cart

Product Details
Company Profile

Polypropylene Spunbond Nonwoven Production Line

Spunbond Nonwoven Production Line

Finish Products	Box bag	Handle bag	T-shirt bag	D-cut bag	Shoes bag
Production Speed	60-120pcs/min
Gusset	0-18cm	0-18cm	0-18cm	0-18cm	0-18cm
Width	25-80cm	10-80cm	26-34cm	10-80cm	10-80cm
Height	20-58cm	20-58cm	10-80cm	20-58cm	20-58cm
Handle	37-60cm	37-60cm
Roller Width	1.25m
Fabric Thickness	35-100GSM
Loop Handle Thickness	60-120GSM
Power Supply	220V 50Hz
Total Power	22KW
Overall Size	12000X2600X2000MM
Gross Weight	4100KG

Specification

item	value
Core Components	PLC, Engine, Motor
Automatic Grade	Automatic
Product name	PP Spunbond Nonwoven Fabric Machine
Raw material	PP Chips
Machine Type	S, SS, SSS, SMS
Width	1600-3200mm
Speed	150m/min
Product weight	10-150g/m2

Advantages

1. Energy-saving:
All main motors of machine use Variable Frequency Motor(AC), eliminating three-phase asynchronous motors;
Variable Frequency Motor:
(1) Speed regulation is easy and energy saving.
(2) AC motor has simple structure, small volume, small inertia, low cost, easy maintenance and durability.
(3) It can expand output and achieve high speed and high voltage operation.
(4) Soft start and fast brake can be achieved.
(5) No spark, explosion-proof, and strong environmental adaptability.
2. High output:
Take "PP" material as an example, the PP material is tested on the customer's site, our machines' actual production output
is10%-20% higher than the same model in the market;
3. Simple installation:
The equipment is easy to install, only need to be connected to the inlet and outlet water, which can save 2 days of installation time.

The resin chips are fed into a screw extruder, heated and melted and extruded from a nozzle. The polymer melted at the exit of the die is subjected to high speed. At the same time, cold air comes from both sides of the die to cool and solidify the fibers to form ultra-fine short fibers. The effect of air flow, these short fibers are aggregated on the fiber collection device to form a web or core.The melt-blown process is a one-step process from thermoplastic resin slicing to making a fiber mesh belt (cloth / core tube).Therefore, the process is short, the product is formed in one step, and the production efficiency is high.By adjusting the combination of meltblown processes, different fiber structure (such as fiber diameter (0.5 ~ 3um), web pore size,etc.) can be achieved. The meltblown process is suitable for a wide range of raw materials and is suitable for processing variousmaterials such as polypropylene, polyester, and nylon. At present, polypropylene materials account for more than 95%.

Polypropylene Spunbond Nonwoven Production Line
