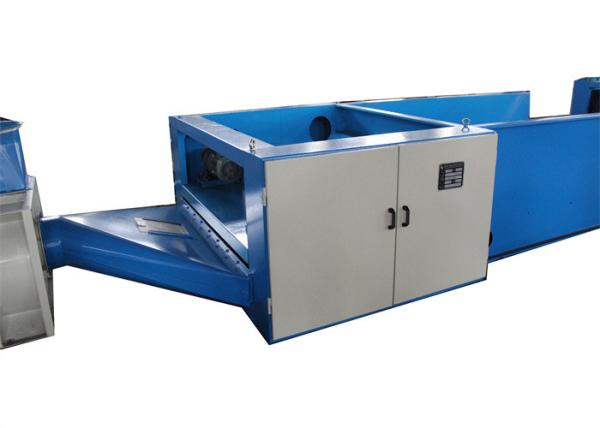

Pin board nonwoven polyester fiber opening machine for carpet
1. It use large rollers and multiple small rollers to rotate and
bite, run at a low speed of 1400 rpm, combing raw cotton up to tens
of thousands of times without damaging the raw cotton;
2. Safe and convenient operation, long continuous operation time
and low maintenance rate;
3. Seamless steel tube main roller, combined with several small
rollers, slotted and wound imported special rack, the main roller
has been processed with high-speed electronic dynamic balancing,
the left and right error is only 0.1-1 grams, to ensure that the
machine runs more Stable and vibration-free, and the machine has a
longer service life and lower maintenance costs.
Functionality & application:
1. Preliminary opening the raw material fibers,
2. While it also helps to filter off impurities and mix the fibers.
3. Available for opening various fibers
Features:
1. Photoelectric and automated control for quantity feeding
2. High efficiency and minimized impairment of fiber.
3. Enclosed design largely reducing the dust and flocks.
4. Convenient maintenance
Technical parameters:
| Working width | 1000mm, 1300mm, 1500mm |
| Capacity | 250kg/h, 500kg/h, 650kg/h |
| Rotary speed | 900RPM |
| Opening method | Pin board, carding wire |
| Installed power | 15.2Kw |
Trade information:
| Trade terms | FOB, CNF, or CIF |
| Lead time | 90 days after deposit. |
| Payment terms | 30% advance payment, 70% paid off before delivery. |
| Warranty | twelve (12) months after mechanical and electrical commissioning. |
| After-sale service | The seller is responsible for installation and debugging. The buyer
is responsible for the round-trip airplane tickets, accommodation,
medical treatment, safety and relative fees. In addition the buyers
should assign translator, workers, electrical cable (from machines
to control panel and from power to control panel) and tools for
installation to cooperate with the work. Installation cost is
USD180/Day/engineer and totally installation period is about 30-40
days depending on well cooperation of the buyer. |
