    HongYi 100m/min Winding Cutting Machine 380V 50Hz

    Ask Lasest Price
    Brand Name : HongYi
    Certification : CE/ ISO9001
    Price : $25,000.00/Sets >=1 Sets
    Supply Ability : 1 Set/Sets per Day
    • Product Details
    • Company Profile

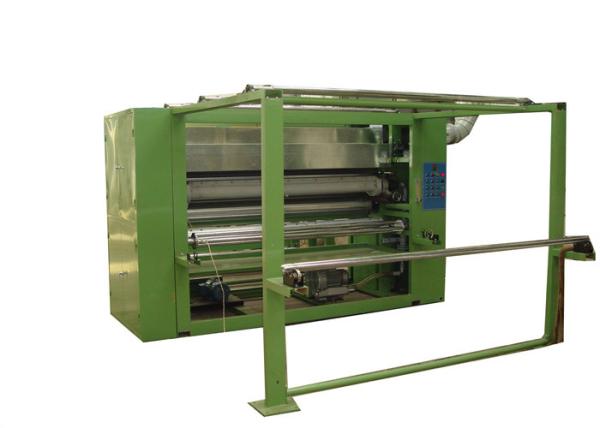

    HongYi 100m/min Winding Cutting Machine 380V 50Hz

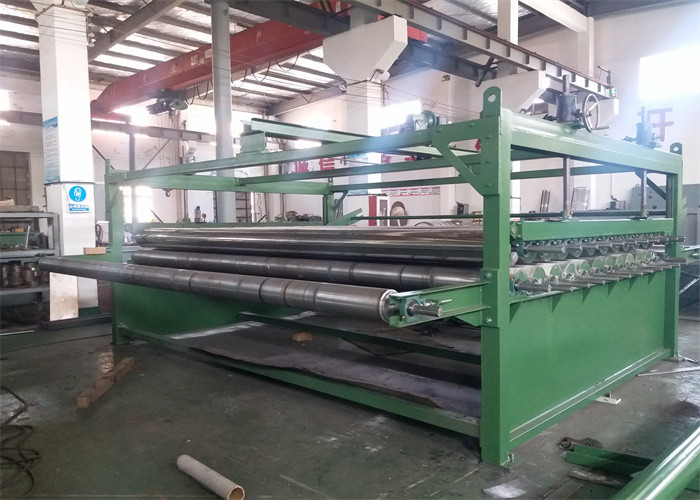

    HongYi -Automatic Nonwoven Wadding Fabric Winder&Cutter Machine For Directly Sale

    Overall Size
    2650*2450*1450mm
    Weight
    2100kg
    Total Power
    5.5 kW
    Power Supply
    380V 50Hz or customized
    Air Pressure
    6 bar
    Slitting Rate
    1-100 m/min
    Blades
    Rotary Shear Blades, 10 sets
    Max. Film Width
    1,300 mm
    Min. Slitting Width
    30mm
    Unwind Shaft O.D.
    76.2 mm
    Max. Unwind O.D.
    500mm
    Rewind Shaft O.D.
    76.2 mm
    Max. Rewind O.D.
    500mm


    Product Application

    • used for cutting ,counting and coiling of nonwovens
    • technical parameter:
    • machine width: 2000-7200mm
    • working speed: <20m/min
    • power: 1.5-4kw
    • machinanical characters :
    • fraction type electronic counter
    • winding roller is by seamless steel pipe with surface covered by rough rubber
    Payment terms
    30% as advance payment by T/T
    70% as balance paid off before delivery.
    Lead time
    90 working days after 30% advance payment.
    Package
    Naked or wooden case
    HS CODE
    84490090
    Warranty
    The Seller gives a mechanical warranty for all machine parts except from the wearing parts and the problem caused by wrong operation and other man-made factors; the respective warranty period shall be twelve (12) months after mechanical and electrical commissioning.
    Installation and commissioning
    The installation and start-up will be carried out under the supervision of the Seller’s technicians if the Buyer requests. The Buyer is responsible for providing the necessary number of skilled mechanics, helpers and electrician to assist the whole installation and start-up. The Buyer is in charge of providing round-trip air tickets, appropriate local accommodation, meals, and local transportation for the technicians. The Buyer must assign qualified interpreter during the whole installation, start-up and training. Service cost
    for installation, start-up and training is USD180 per engineer per day.
