    Fiber Cotton Mixing Machine , Nonwoven Converting Machinery

    Ask Lasest Price
    Brand Name : HONGYI
    Model Number : HYDC
    Certification : ISO9001, CE
    Price : negotitable
    Payment Terms : L/C, T/T
    Supply Ability : 5 sets per month.
    Delivery Time : 30 days.
    • Product Details
    • Company Profile

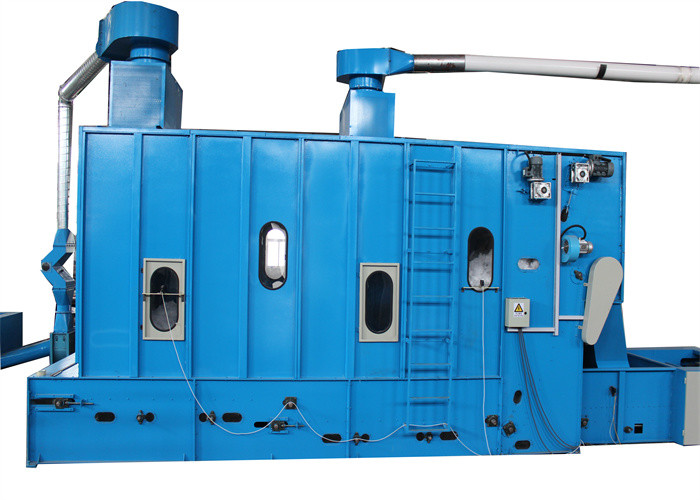

    Fiber Cotton Mixing Machine , Nonwoven Converting Machinery

    Fiber Cotton Mixing Machine(Nonwoven Machine), Fiber Mixer, Fiber Blending Machine


    --- working width: 1300mm
    --- capacity: less than 600kgs/hour
    --- suitable for different types of fibre blending and mixing.
    --- the 2 edges of the beater shaft, there are protection disc to prevent the fiber wrapping onto it.
    --- machine frame is made of 8mm preminium carbon steel, tempered and quenched, to eliminate the inner strength.
    --- beater diameter: Φ270mm
    --- installation power: 8.5 KW
    --- even roll and stripping roll 0.75KW-6 motor, Nail lattice and transmission lattice 1.5KW motor, blending roll 5.5KW motor.
    --- photocell controls the fibre input volume and the fibre storage volume.
    --- nail lattice is inverter controlled, attached with PVC lattice, more durable, transmission lattice is 8 meters long.
    --- machine weight: 2000KGS


    Features:

    1. Photoelectric control during the production process.

    2. Fiber density spreads even.

    3. The stripper and evener roller are in the independent transmission. This will be with high dependability, easy adjustment and maintenance.

    4. The spike lattice with the machine behind control the feeding by Photoelectric to make the blending evener.


    Technical parameters:

    Working width1400mm, 1700mm, 2500mm
    Storage volume16m3-30m3
    Capacity300kg/h, 500kg/h, 800kg/h
    Installed power8.8Kw

    Trade information:

    Trade termsFOB, CNF, or CIF
    Lead time90 days after deposit.
    Payment terms30% advance payment, 70% paid off before delivery.
    Warrantytwelve (12) months after mechanical and electrical commissioning.
    After-sale service

    The seller is responsible for installation and debugging. The buyer is responsible for the round-trip airplane tickets, accommodation, medical treatment, safety and relative fees. In addition the buyers should assign translator, workers, electrical cable (from machines to control panel and from power to control panel) and tools for installation to cooperate with the work. Installation cost is USD180/Day/engineer and totally installation period is about 30-40 days depending on well cooperation of the buyer.
